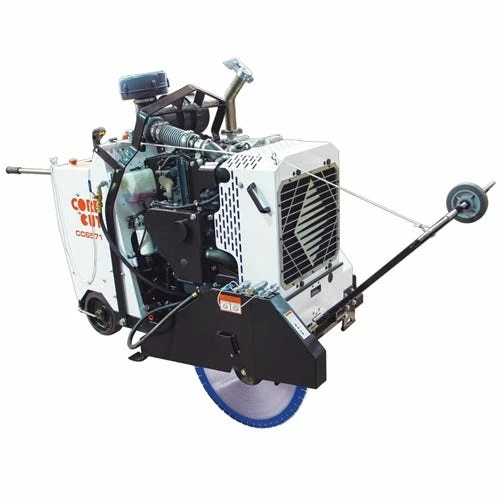

Diamond Products 20″ Core Cut 71HP Kubota Diesel CC6571D-20 Concrete Walk-Behind Saw 55625

Diamond

CC6571D Liquid Cooled Walk Behind Saw 55625

FEATURES:

• Clean and quiet Kubota V2607 diesel engine
• Proven turbo charged 4-cylinder; 2.6L liquid cooled engine like the CC6566D; but with 71.1HP (53 kW)
• Liquid cooled feature allows for a smoother running; longer lasting saw with higher productivity
• Strongest frame on the market
• Less rear weight for easy maneuvering and reduced operator fatigue

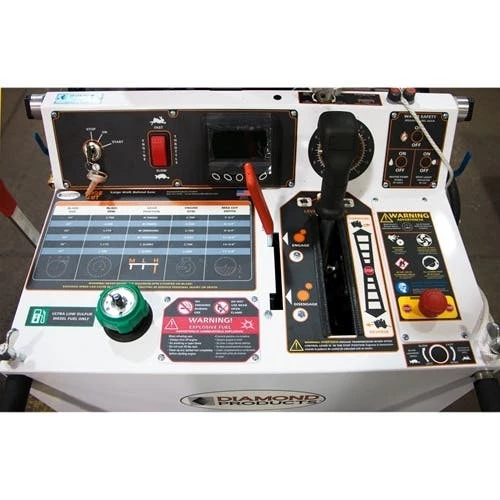

• One hand sawing control and parking brake
• Fits through a 36 wide door frame (when guard is removed)
• Quick release blade shaft/flange and rear wheels
• Blade shaft tachometer that gives true blade speed where it’s needed – not at the engine
• Tier 4 Final liquid-cooled engine allows for a smoother running; longer lasting saw with higher productivity
• Easy to maneuver self propelled drive
• Strongest frame on the market
• Less rear weight for easy maneuvering and reduced operator fatigue
• Oil bath blade shaft comes standard
• One-hand sawing control and parking brake
• Fits through a 36” wide door frame (when guard is removed)
• Quick release blade flange
• Blade shaft tachometer-where it’s needed-not at the engine; gives true blade speed

SPECIFICATIONS:

Blade shaft diameter:	2”
Arbor size:	1” with drive pin
Blade shaft drive:	10 belt
Blade mounting:	Right or left
Blade raise & lower:	Electro-hydraulic pump
Transmission:	Eaton model 10
Drive speed:	0-200 feet/minute
Air filter:	4 stage
Fuel capacity:	9 gallons

“
