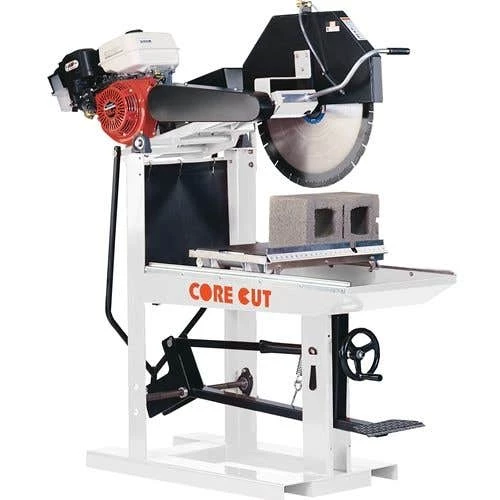

Diamond Products 20″ Core Cut 8HP Honda CC808MH-20 Block Saw 47024

Diamond Product

20 8 HP Honda Engine Block Saw CC808MH-20 47024

FEATURES:

• 24 blade cuts a 10 block in a single pass
• Variety of power options
• Stay level blade guard and enclosed blade shaft
• Replaceable cart travel rails
• Durable 3/16 steel frame
• Includes water pump
• Easy rolling 16 x 25 aluminum cutting cart/tray with vulcanized rubber coated non-slip top
• Large capacity; deep tapered water tray
• Foot pedal controlled operating head leaves the operators hands free to guide material
• Hand wheel for quick and easy blade cutting depth adjustment
• Enclosed cart wheels prevent damage
• Forklift opening for easy transport
• 2 V-belts promote efficient delivery of power to the blade
• Open back design for rip cutting longer materials
• Counterbalanced stay level blade guard assures the head is parallel to the cutting cart at all times
• Specifications:
• Maximum Depth of Cut: 8 with 20 blade; 10 with 24 blade
• Arbor Diameter: 1
• Blade Shaft Bearings: Flange block ball bearings
• Blade Shaft Drive: 2 premium grip notch v-belt
• Blade Raise/Lower: Counterbalanced; spring tensioned head pivots on two 1 flange block bearings
• Blade Coolant: Dual spray tubes; pump fed (electric models); garden hose connection (gas models)
• Air Filter: 3-stage cyclone (gas models)
• Fuel Capacitor: 1 gallon (gas models)
• High Temp Shut-off: Included (electric models)
• Starter: Recoil on gas models; capacity on electric models

SPECIFICATIONS:

Maximum Depth of Cut:	8 with 20 blade; 10 with 24 blade
Arbor Diameter:	1
Blade Shaft Bearings:	Flange block ball bearings
Blade Shaft Drive:	2 premium grip notch v-belt
Blade Raise/Lower:	Counterbalanced; spring tensioned head pivots on two 1 flange block bearings
Blade Coolant:	Dual spray tubes; pump fed (elecZZic models); garden hose connection (gas models)
Air Filter:	3-stage cyclone (gas models)
Fuel Capacitor:	1 gallon (gas models)
High Temp Shut-off:	Included (elecZZic models)
Starter:	Recoil on gas models; capacity on electric models

Blade Capacity	Sawing Engine/Motor Make	Motor/Engine Power	Electric Start	Power Source	Part Number	Catalog Number
20	Baldor	5 HP-1PH; 230V	No	Electric	5800540	46820
20	Baldor	5 HP-3PH; 230V	No	Electric	5800541A	96416
20	Baldor	5 HP -3PH; 460V	No	Electric	5800541B	18533
20	Baldor	7.5 HP-1PH; 230V	No	Electric	5800542	47664
20	Baldor	7.5 HP-3PH; 230V	No	Electric	5800544A	96015
20	Baldor	7.5 HP-3PH; 460V	No	Electric	5800544B	936
24	Baldor	7.5 HP-1PH; 230V	No	Electric	5800543	470
24	Baldor	7.5 HP-3PH; 230V	No	Electric	5800545A	97240
24	Baldor	7.5 HP-3PH; 460V	No	Electric	5800545B	97000
20	Honda GX270	8 HP; 14.1 torque (lbs.-ft.)	No	Gas	5800546	47024
20	Lifan LF177F	9 HP	No	Gas	5801107	33971
20	Honda GX390	11 HP; 19.5 torque (lbs.-ft.)	No	Gas	5800547	47047
24	Honda GX390	11 HP; 19.5 torque (lbs.-ft.)	No	Gas	5800548	47046
20	Honda GX390	11 HP; 19.5 torque (lbs.-ft.)	Yes	Gas	5800566	60933
24	Honda GX390	11 HP; 19.5 torque (lbs.-ft.)	Yes	Gas	5800567	81160

“
