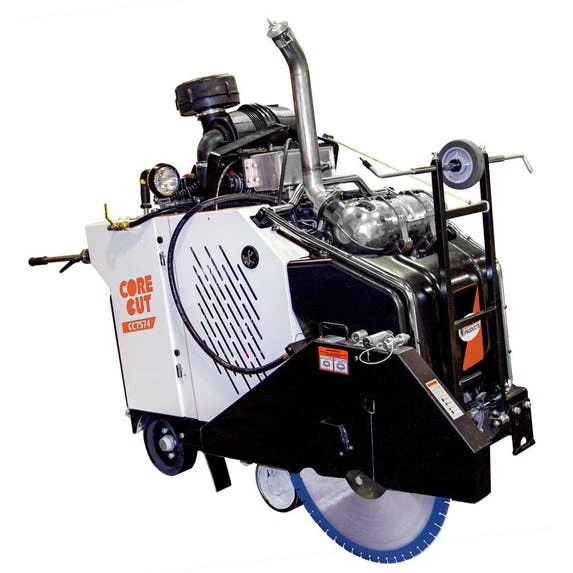

Diamond Products 36″ 74 HP Single Speed Deutz Turbo Diesel In-Line Walk Behind Saw 75013

Diamond Products

36″ 74 HP Single Speed Deutz Turbo Diesel In-Line Walk Behind Saw 75013

In-line Walk Behind Saw with Increased Production, Lower Maintenance Costs and Better Fuel Efficiency.

FEATURES:

• Tier 4 Final Deutz diesel engine.
• Available with enhanced clutch assembly that allows the blade to be disengaged while the engine is running (single speed only).
• Easy maneuvering self propelled drive.
• Strongest frame on the market.
• Hydraulic wheel motor drive.
• Blade shaft gearbox-oil bath for low maintenance.
• 4 stage air filter system.
• 19-3/4″ maximum cutting depth.
• Maintenance-free DVERT diesel oxidation catalytic converter (DOC-only, no DPF).
• High pressure common rail electronic fuel injection.

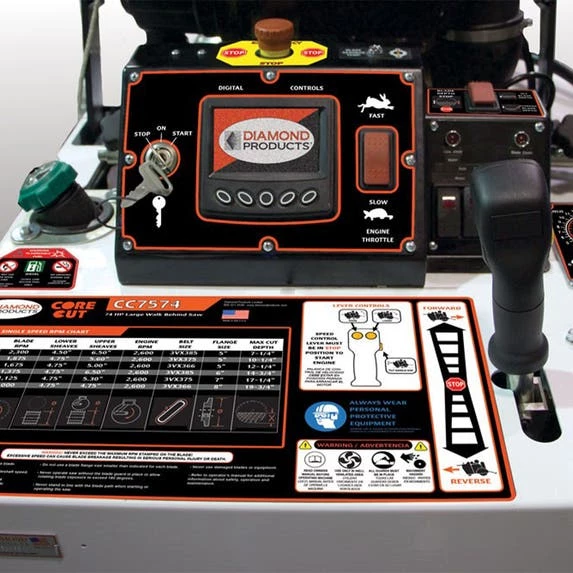

• Modern computer interface engine controls 20″-48″ Blade Capacity.

SPECIFICATIONS:

Part Number	5801259
Catalog Number	75013
Blade Capacity	36″
Sawing Power Source	Diesel
Sawing Engine/Motor Make	Deutz Turbo
Motor/Engine Power	74 HP
Speeds	Single Speed
Maximum depth of cut with 36″ blade	14-3/4″ (6″ flange)
Max Engine Power	74.3HP at 2,600 RPM
Blade shaft diameter	2″
Drive speed	0-250 feet/min forward and reverse
Fuel capacity	9 gallons
