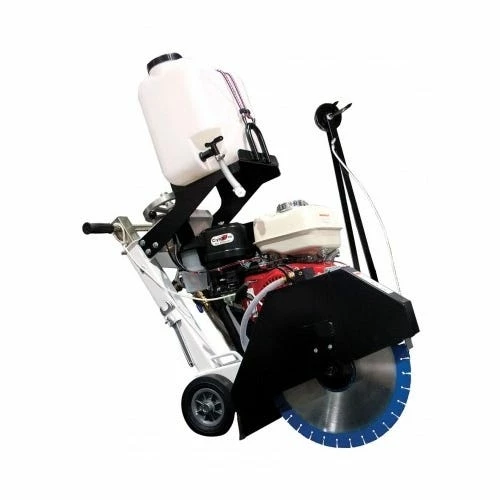

Diamond Products Core Cut 20″ CC1300XL 12HP Honda Concrete Walk-Behind Saw 21855

FEATURES:

• Heavy duty frame design
• Honda GX390 11.7 HP; 19.5 torque (lbs.-ft.)
• Cyclone air filter
• Easy to maneuver push drive
• Four position heavy duty handles offer no slack and don’t rattle like other adjustable handles
• Through rear axle for added strength
• Solid sealed and self aligning blade shaft bearings
• Slip-on blade guard for easy blade access
• Three V-belts for extra power delivery to the blade shaft
• Left or right side sawing
• Optional water tank available for dust suppression

SPECIFICATIONS:

Maximum depth of cut with 14 blade:	4-5/8″
Maximum depth of cut with 18″ blade:	6-5/8″
Maximum depth of cut with 20″ blade:	7-5/8″
Blade shaft RPM:	2;600
Blade shaft diameter:	1-1/4″
Arbor size:	1″ with single drive pin
Blade mounting:	Right or left

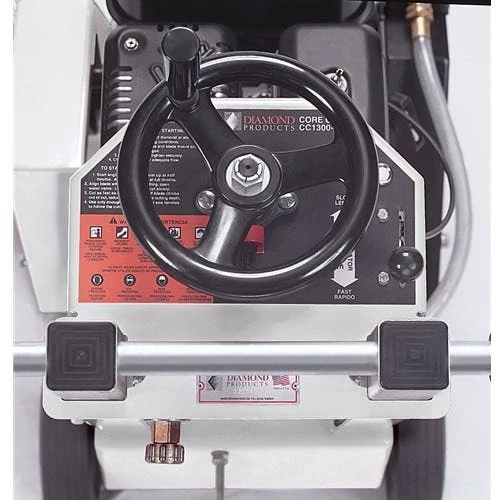

Blade raise/lower:	Precision screw feed
Handle bars:	Adjustable

“
