JET Tools Jet 5SS-1C-10 5 Ton 1Ph 10′ Lift 115/230V Prewired 230V 511000

Jet

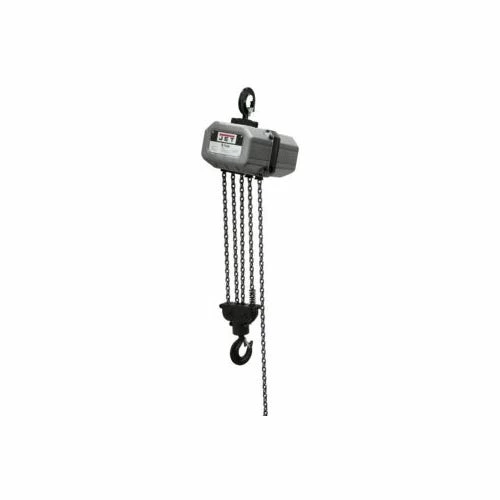

5SS-1C-10; 5-Ton Electric Chain Hoist 1-Phase 10′ Lift 511000

JET SSC Series electric hoists combines safety and durability to operate in commercial and industrial applications. The maintenance-free gear train incorporates a sealed oil bath; for reliability and durability. The JET SSC series electric hoist is available in ton to 5 ton capacities with standard lifts of 10; 15; and 20 feet (custom lifts available).

FEATURES:

• SAFETY:
• Overload Protection- Slip Clutch design prevents the hoist from lifting damaging loads above its rated capacity
• Thermal Overload Protection- Protects the hoist from overheating in low voltage situations
• DC Electro-Magnetic Brake- An industry-proven safety feature that secures the load even if power is interrupted to the hoist
• Limit Switches- Upper and lower limiting switches increase safety by preventing the load chain from over traveling
• Complies with OSHA Regulations; ANSI / ASME B30.16 and HST-1 Standards
• Load tested to 125% of capacity with certificate
• DURABILITY:
• Sealed Gear Train- Maintenance-free gear train incorporates a sealed oil bath that eliminates upkeep
• Grade 80 Load Chain- Grade 80 black oxide coated load chain for durability
• Control Pendant- 24 volt push button controller with cable strain relief system for durability and reliability in industrial and commercial settings
• All Steel Construction- Fully enclosed; all steel plate construction with a durable powder coat finish keeps out moisture; dust and debris lengthening the life of the hoist

SPECIFICATIONS:

Duty Rating	H3
Duty Cycle	25%
Controls	NEMA 4X compliant push button control pendants
Load Capacity (Tons)	5
Lift (Ft.)	10
Lifting Speed (FPM)	5
Headroom (In.)	30-11/16
Motor Power (HP)	1-3/4
Motor Voltage (V.)	115 / 230
Load Chain Dimensions (Mm.)	8 x 24
Number of Falls	4
