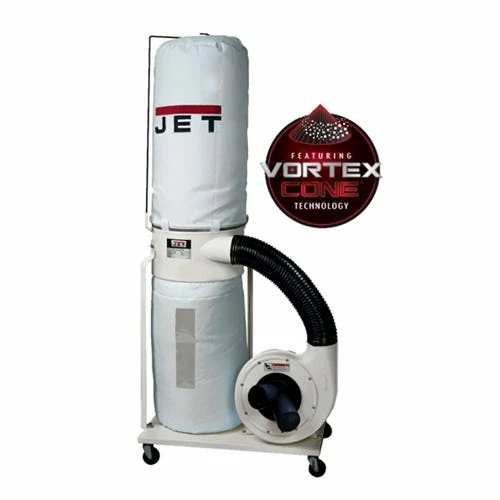

JET Tools Jet DC-1200VX-BK3 Dust Collector; 2HP 3PH 230/460V; 30-Micron Bag Filter Kit 710703K

Jet

DC-1200VX-BK3 Dust Collector; 2HP 3PH 230/460V; 30-Micron Bag Filter Kit 710703K

The JET® DC-1200VX features the exclusive Vortex Cone which improves chip separation to prevent clogging of the filter; and increases packing efficiency of the collector bag. The high air velocity (CFM) stands up to any competitive specifications; and the industrial controls are designed for years of durable use. Collection bags have a snap ring for fast installation and removal. Casters offer maneuverability within the shop.

FEATURES:

• Vortex Cone improves chip separation and collector bag packing efficiency.
• Eliminates premature filter clogging for sustained performance.
• Single-stage design for economical and quiet operation.
• Industrial controls designed for years of trouble-free use.
• Quick-connect collection bags with elastic band for fast; easy installation and removal.
• High air velocity (CFM) design stands up to any competitive specifications.
• Permanently lubricated; totally enclosed; fan-cooled motors are rated for continuous-duty.
• Includes four casters for maneuverability and total portability.

SPECIFICATIONS:

Number of Air Inlets	1 at 6; 2 at 4″
1-Hose Connection Diameter (In.)	6
2-Hoses Connection Diameter (In.)	4
Air Flow @ 4″ (CFM)	1200
Style (Type)	Bag
Efficiency (Micron)	30
Collection Bag Capacity (Cu. Ft.)	5-3/10
Impeller Material	Steel
Sound Rating (Db.)	80 – 85
Motor Power (HP)	2
Motor Voltage (V)	230/460
Motor Amps	6/3

“
