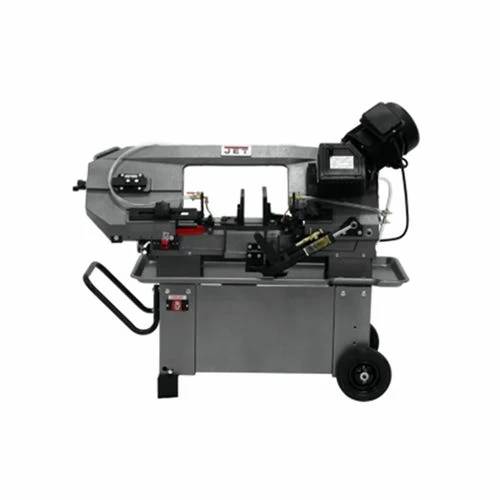

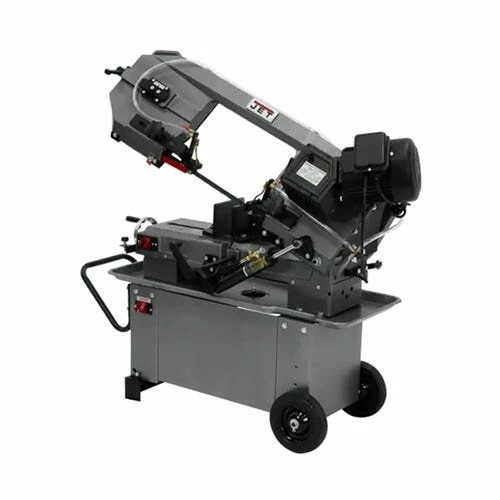

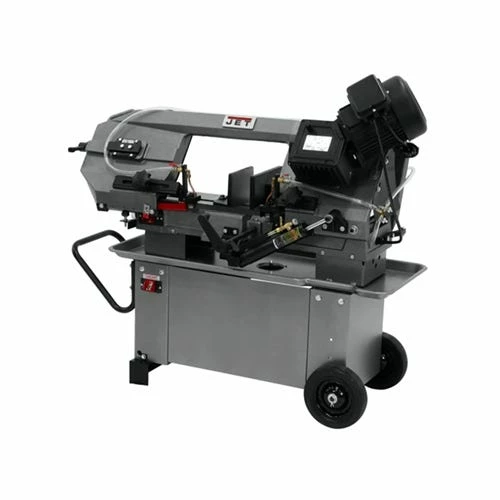

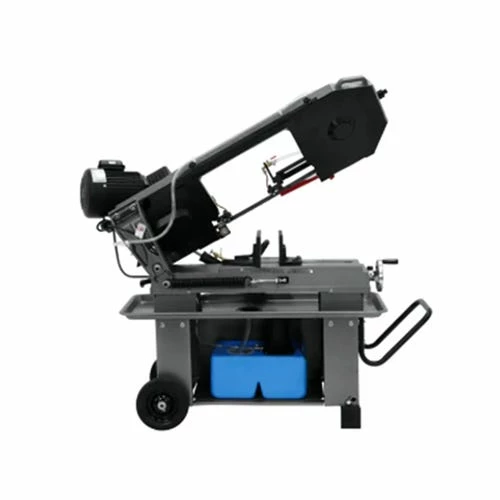

HBS-812G; 8 x 12″ Horizontal/Vertical Geared Head Bandsaw 413460
Innovative and built to last; that’s how customers describe the latest addition to the JET line of saws. Easy speed change; quick lock vise and large 8″ wheels enhance the convenience of this rugged machine. It is everything you expect from a JET saw.
FEATURES:
- Heavy-duty geared head transmission for quick speed changes.
- Heavy-duty cast iron saw bow and head.
- Hardened and ground worm gear.
- Large 8″ wheels and handle for easy movement.

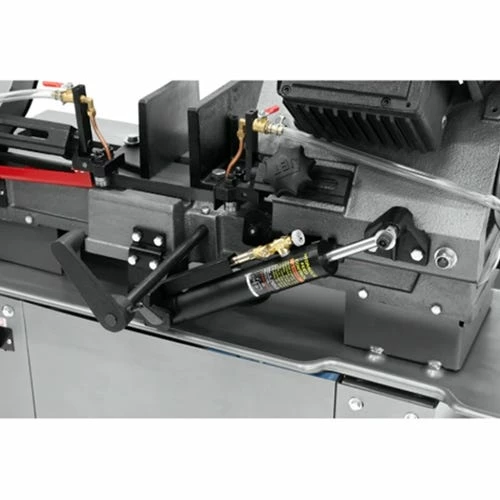

- Quick-positioning vise swivels to 45°; reducing set up time.
- Built-in; self propelled blade brush extends blade life.
- Vertical work table.
- Coolant system.
- Adjustable material stop.
- 3/4″ Bi-Metal blade.
SPECIFICATIONS:
| Cutting Capacity (W x D) (In.) | 8 x 12 |
|---|---|
| Round at 90 Degrees (In.) | 8 |
| Round at 45 Degrees (In.) | 5 |
| Rectangle at 90 Degrees (In.) | 8 x 11-1/4 |
| Rectangle at 45 Degrees (In.) | 5 x 8 |
| Vise Swivels (Deg.) | 45° |
| Blade Speeds (SFPM) | 145; 200; 245 |
| Blade Wheel Diameter (In.) | 11-1/2 |
| Blade Length (In.) | 93 |
| Blade Size (In.) | 3/4 x .035 x 93 |
| Bed Height (In.) | 43 |
| Motor (HP) | 1 HP; 115/230V; 1Ph |
| Overall Dimensions (L x W x H) (In.) | 51 x 19 x 43 |
| Drive | Geared Head |
“
