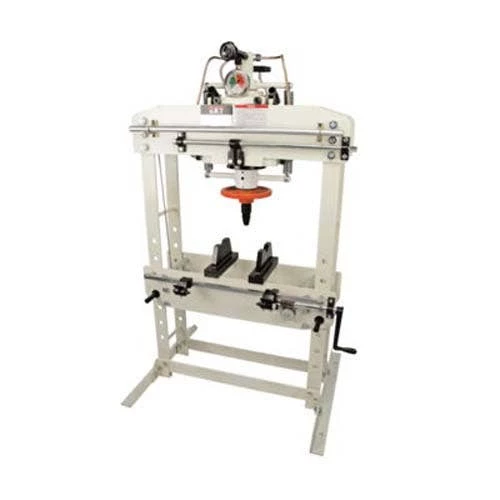

JET Tools Jet HP-35A 35-Ton Hydraulic Press 331431

Original price was: $341.00.Current price is: $97.99.

Jet
HP-35A; 35-Ton Hydraulic Press 331431
JETs Hydraulic Shop Press line consists of a 5; 15 and 35 ton hydraulically powered H frame press. Each machine is built using heavy steel plate that is electro welded together; and comes standard with industrial grade hydraulics. These machines are for the serious fabrication and machine shop owner who demands only the best quality from his operation.
For pressing; bending and straightening operations
Easy-to-use; hand-operated with pressure gauge for direct pressure readings
Tables raise and lower easily with use of hand crank on the 15- and 35on models
Side frames are open for inserting long material
Fast setup ram extension screw
Ram moves laterally for added versatility (15- and 35-ton models)
Two bed plates and pump handles
Straightness testing support uses centers or v-blocks on the 15 and 35 Ton models
Capacity (Tons) 35
Ram Diameter (In.) 3
Piston Stroke (In.) 4-3/4
Screw Stroke (In.) 4
Work Table Size (In.) 31 x 10-3/8
Lateral Movement (In.) 15
Vertical Table Travel (In.) 23-5/8
Overall Dimensions (L x W xH) (In.) 43 x 34 x 69
Weight (Lbs.) 783
