JET Tools Jet J-7020M 10″ X 16″ Horizontal Mitering Bandsaw 115/230V 1Ph 414474

• Jet

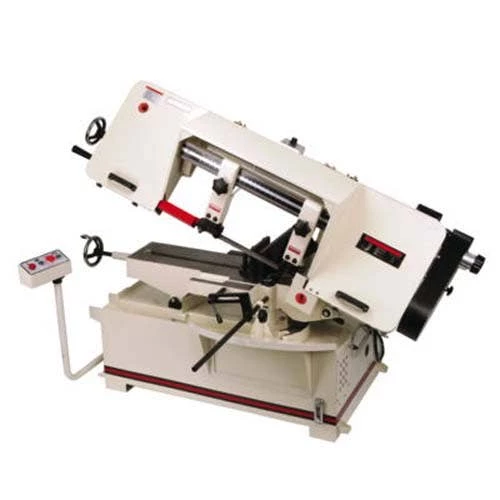

• J-7020M; 10 x 16″ Horizontal Mitering Bandsaw 414474
• JET Mitering Horizontal bandsaws unique design features a swiveling head while the base remains stationary. This allows the stock to remain same position while making accurate crosscuts and miters. Backed by the industry leading two year warranty; JET Mitering Bandsaws are built to last and deliver precision results.
• Mitering head swivels to cut any angle 0 – 45 while the work piece remains secured
• Swivel control panel houses major saw controls
• Variable speed drive system allows the operator to easily fine tune the blade speed
• Adjustable blade guide with six contact point system that utilizes cam follower bearings mounted on eccentric shafts on both sides of the blades
• The blade rides on two load bearings mounted on a pivot shaft with the side bearings and carbide pads assisting in distributing the load equally
• Downfeed system is controlled by a dual system of counterbalance springs working with a hydraulic cylinder
• Heavy-Duty transmission utilizes hardened and ground gears operating in an oil bath
• Cast Iron blade wheels
• Coolant system
• Adjustable material stop
• 1″ Bi-Metal blade
• Cutting Capacity (W x D) (In.) 10 x 16
• Round at 90 Degrees (In.) 10
• Round at 45 Degrees (In.) 8-1/2
• Rectangle at 90 Degrees (In.) 10 x 14 and 2 x 16
• Rectangle at 45 Degrees (In.) 8-1/2 x 9
• Vise Swivels (Deg.) 45
• Head Movement (Deg.) 45
• Blade Size (In.) 1 x .035 x 135
• Blade Length (In.) 135
• Blade Wheel Diameter (In.) 14
• Blade Speed (SFPM) 100 – 350
• Bed Height (In.) 25-1/2
• Motor (HP) 1-1/2 HP; 115/230V; 1Ph
• Drive Variable Speed
• Overall Dimensions (L x W x H) (In.) 76 x 30 x 48
• Weight (Lbs.) 1;134

“
