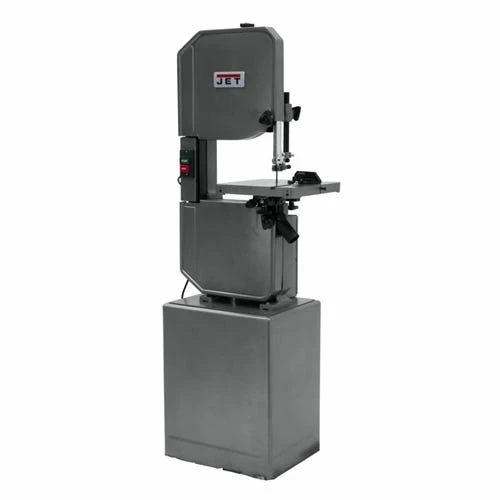

JET Tools Jet J-8201K 14″ Wood/Metal Vertical Bandsaw 414500

Jet Tools

J-8201K 14 Wood/Metal Vertical Bandsaw 414500

The line of JET Metal/Wood Vertical Bandsaws offers machine and fabrication professionals all the power and precision in a package that meets their individual specifications. JET has engineered a gear box that permits cutting of a great variety of materials; then backed it with the industry leading two year warranty.

FEATURES:

• For added safety; the J-8201K follows strict guidelines and electrical requirements to be certified by CSA Group.
• Solid one piece steel base for extra stability.
• Conveniently located on/off switch.
• Gear box design allows wood/metal model saws to be used for a wider variety of metal; wood; non-ferrous metal and plastic cutting applications.
• Miter gauge.
• Dust chute.

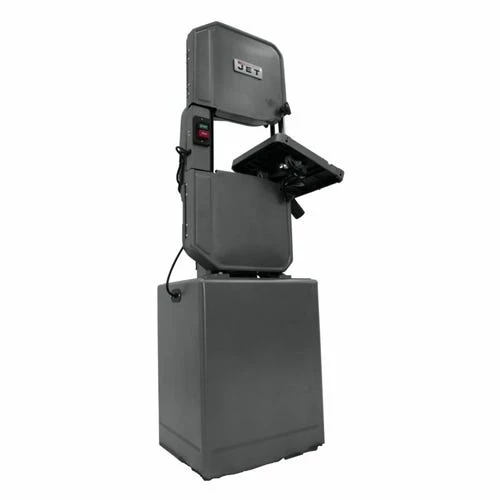

• Adjustable table.
• 14 TPI Metal Cutting Blade Included.
• 6 TPI Wood Cutting Blade Included.

SPECIFICATIONS:

Blade Speeds Metal (SFPM)	39; 57; 78; 107; 142; 196; 278
Blade Speeds Wood (SFPM)	3;300
Height Capacity (Max.) (In.)	6″
Under Guide with Riser Block (In.)	12″
Throat Capacity (In.)	13-1/2″
Under Guide (In.)	6″
Table Size (L x W) (In.)	14″ x 14″
Table Tilt to Right (Deg.)	45
Table Tilt to Left (Deg.)	15
Blade Size (In.)	3/8″ x .025″ x 92-1/2″
Miter Gauge Groove Wide x Deep (In.)	3/4″ x 3/8″
Table Height (In.)	44″
Blade Length (In.)	92-1/2″
Blade Width (Min.-Max.) (In.)	1/8″ – 3/4″
Motor (HP)	1 HP; 115/230V; 1Ph
Overall Dimensions (L x W x H) (In.)	25-1/2″ x 22-3/8″ x 73-1/2″
Weight	325 lbs

“
