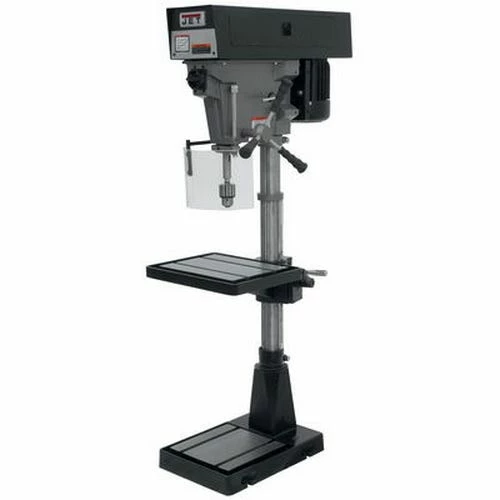

JET Tools Jet J-A3816 15″ Metalworking 6-Speed Drill Press 354500

• Jet Tools
• Constructed to provide a solid base for drilling
• Offers a greater range in spindle speeds than others in this class
• Larger quill provides greater accuracy
• Large production work table gives the operator the room to work and support for the job
• 3 Column for head support; while the quill is also supported to lessen deflection
• Includes 1/2″ drill chuck and arbor
• Specifications
• Stock Number:     354500
• Model Number:    J-A3816
• Drilling Capacity Cast Iron:     5/8″
• Drilling Capacity Mild Steel:    1/2″
• Column Diameter:    3″
• Distance Column to Spindle:    15″
• Range of Spindle Speeds:    375-5000
• Spindle Travel:    6″
• Spindle Distance to Base:    44-1/2″
• Max Distance Spindle to Table:    25-3/4″
• Table Size:    15 x 18
• Table Travel:    16-3/4″
• T-slots Number and Size:    2 & 1/2″
• T-slot Centers:    5-5/16″
• Worktable Weight Capacity:    90 lbs.
• Spindle Taper: MT-2
• Base Dimensions:    20-7/8 x 14-2/26 x 3-1/8″
• Base Work Table:    12-1/8 x 1-13/16″
• Base Slots Number and Size:    2 & 1/2″
• Motor:    1 HP; 115/230VAC; 1Ph; Prewired 115V
• Overall Dimensions:    30 x 20 x 71″
• Net Weight:    394

“
