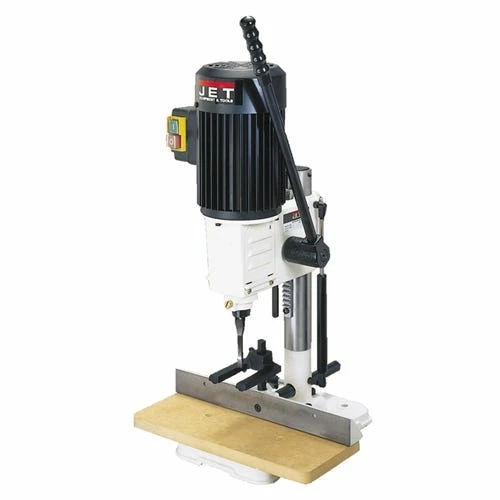

JET Tools Jet JBM-5 Benchtop Mortiser 708580

Jet Tools

JBM-5 Benchtop Mortiser 708580

This conveniently sized; but powerful machine can be used on a bench or an independent stand. Heavy duty construction provide the durability; consistency and stability needed to produce quality results every time.

FEATURES:

• Heavy-duty cast iron and steel construction provides durability and stability during use.
• Dependable rack-and-pinion head adjustment gives you accurate position control.
• Long; multi-position mortising handle let you reposition the feed handle for easier operation and optimum handle position.
• Three-jaw drill chuck keeps a positive grip on mortising bits with up to 3/8 diameter shanks.
• Two hinged side doors allow easy access to the drill chuck.
• Quick adjust depth stop for uniform mortise depths.
• Column is reversible for mortising larger stock.
• Removable On/Off toggle switch prevents accidental or unauthorized use of the tool.
• Powerful 1/2HP motor provides consistently smooth performance.

SPECIFICATIONS:

Style (Type)	Benchtop
Chisel Center to Fence (In.)	3-1/2″
Chisel Shank Capacity (In.)	5/8″; 3/4″
Chuck Size (In.)	3/8″
Motor Amps	6
Bushing Size (In.)	5/8″ & 3/4″
Fence Size (L x H) (In.)	1-9/16″ x 13-3/4″
Motor Power (HP)	1/2
Base Size (In.)	7-5/8″ x 12-3/16″
Chisel Stroke (In.)	4-3/4″
Motor Voltage (V.)	115
Motor Phase (PH)	1
Spindle Speed (RPM)	1725
Under Hold-Down (In.)	4″
Prewired Voltage (V.)	115
Weight	52 lbs

“
