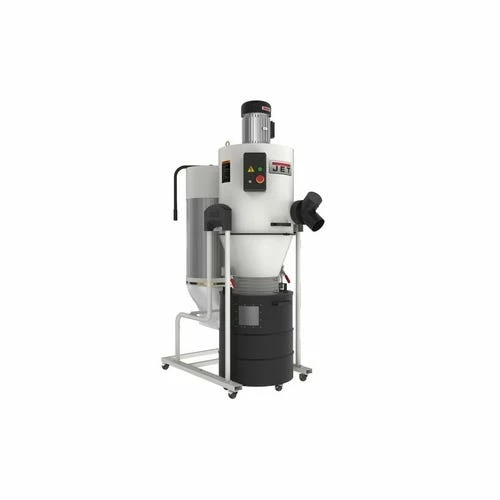

JET Tools JET JCDC-2 Cyclone Dust Collector 2HP 230V 717520

• JET
• JCDC-2 Cyclone Dust Collector; 2HP; 230V 717520
• JET Cyclone Air Filters bring maximum efficiency to your shop through their increased power and convenient designs and features. Direct mount filters; large collection bins and remote controls make JET Cyclone Dust Collection Systems the most powerful and efficient around.
• The cyclone’s two stage separation provides more working CFM than comparable horsepower single stage units
• Heavy debris is pulled down to collection drum before debris stream reaches the filter; providing constant suction
• Direct mounted filter eliminates inefficiencies from ridged flex hosing and bends
• Fine dust particles are filtered through pleated material that captures even the smallest particles down to 1 micron and below
• Heavy debris is captured in 20 gallon drum with quick release levers and independent casters for quick emptying
• Included radio frequency remote control works from up to 50 feet away
• Remote timer settings of 2; 4; 6; or 8 hours (2HP & 3HP models only)
• Double paddle manual cleaning system quickly cleans the pleated filter
• Swivel casters make it easy to move the unit around the shop
• Number of Air Inlets: 1 at 6; 2 at 4″
• Filter Efficiency (Micron): 1
• Static Pressure (Wc.): 3.8
• Sound Rating (Db.): 76
• Impeller Diameter (In.): 14-1/2
• Impeller Material: Steel
• Velocity @ 6″ (FPM): 7813
• 1-Hose Connection Diameter (In.): 6
• Assembled Dimensions (L x W x H/In.): 25-7/8 x 50-5/8 x 72-1/4
• Footprint (L x W/In.): 50-5/8 x 25-7/8
• 2-Hoses Connection Diameter (In.): 4
• Canister Filter Length (In.): 22-5/8
• Motor Power (HP): 2
• Canister Filter Diameter (In.): 14-9/16
• Canister Collection Bag (Dia. x L/In.): 23-5/8 x 19-11/16
• Motor Phase (PH): 1
• Drum Collection Bag (Dia. x L/In.): 30-11/16 x 32-11/16
• Motor Voltage (V.): 230
• Prewired Voltage (V.): 230
• Max. Static Pressure (Wc.): 10.1
• Collection Drum Capacity (gal.): 30
• Motor Amps: 9
• Air Flow @ 6″ (CFM): 1538
• Weight: 210 lbs

“
