Jet Tools

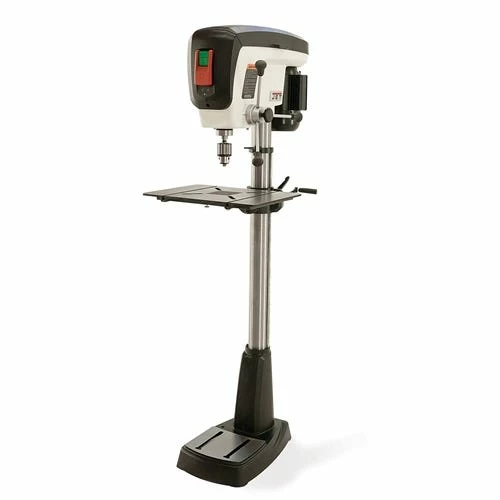

Woodworking 17 JDP-17 Drill Press 716300
From a full 5” of spindle travel to the sturdy cast iron head with a poly v-belt drive system; this drill press is designed to perform. This drill press also features a long-lasting; built-in LED work light to provide direct lighting while reducing shadows.
FEATURES:
- Spindle travels a full 5” with one revolution of the handle.
- Large 14″ x 19″ precision ground work table features twin T-slot grooves and 4 table slots to accommodate any project.
- One-handed belt tensioning allows for rapid speed changes.
- Power switch features a safety key and large; paddle-style off button.
- Integrated depth stop makes repetitive drilling quick and easy.
- Xacta-X laser system easily identifies the drill center.
- Long-lasting; built-in LED work light reduces shadows.
- Table edge lip designed to make clamping easy.
- Replaceable MDF table insert.
- Large cast iron base provides stability.
- Powered by an efficient 3/4HP; 1Ph; 115V TEFC motor and poly-v belt drive system.
- CSA Certified.
SPECIFICATIONS:
| Style (Type) | Floorstanding Model |
|---|---|
| Swing (In.) | 16-7/8″ |
| Spindle Travel (In.) | 5″ |
| Number of Spindle Speeds | 16 |
| Spindle Speed Range (RPM) | 210 – 3500 |
| Spindle Distance to Table (Max.) (In.) | 30″ |
| Spindle Distance to Base (In.) | 46-1/2″ |
| Table Size (L x W) (In.) | 14″ x 19″ |
| Table Tilt (Deg.) | 90 Left and Right |
| Chuck Distance to Base (In.) | 42-7/8″ |
| Chuck Distance to Table (In.) | 25-7/8″ |
| Chuck Size (In.) | 5/8″ |
| Column Diameter (In.) | 3-5/32″ |
| Base Size (In.) | 20″ x 12-5/8″ |
| Motor Power (HP) | 3/4 |
| Motor Phase (PH) | 1 |
| Motor Voltage (V.) | 115 |
| Prewired Voltage (V.) | 115 |
| Motor Amps | 9 |
| Recommended Circuit Size (Amps.) | 15 |
| Assembled Machine Dimensions (L x W x H) (In.) | 28-1/2″ x 19″ x 65″ |
| Weight | 253 lbs |
“
