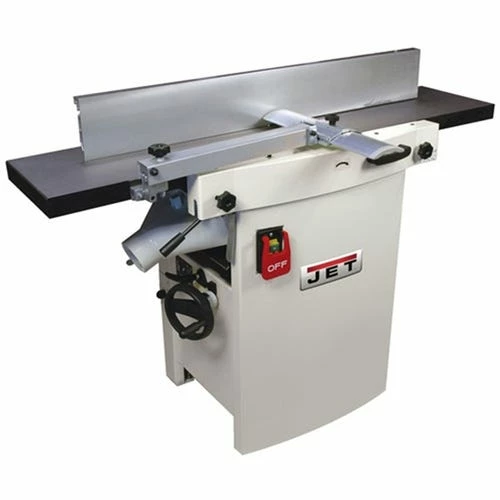

JET Tools Jet JJP-12HH 12″ Planer/Jointer Combination Machine W/ Helical Blades 708476

Jet Tools

JJP-12HH 12 Planer/Jointer Combination Machine w/ Helical Blades 708476

The innovative JET JJP-12HH Helical Head 12″ Jointer/Planer takes our award-winning jointer/planer combination machine and makes it an ever better investment. With the addition of our quality helical cutterhead with indexable carbide inserts; the all-new JJP-12HH sets the standard for creating superior stock in your own workshop.

FEATURES:

• Helical cutterhead with indexable carbide inserts for a superior finish and quieter cut.
• Parallelogram design keeps the table close to the cutterhead for improved finish and allows for precise depth of cut adjustments.
• Extra large aluminum extruded fence with centered controls for quick adjustments.

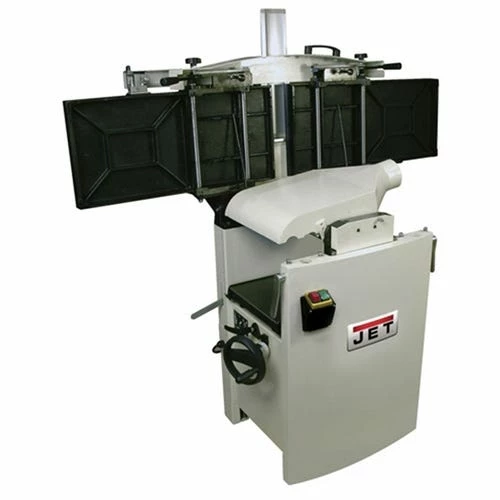

• Extremely quick changeover between jointing and planing functions. Fence does not need to be removed.
• Powerful 3HP induction motor easily handles the toughest jointing and planing tasks.
• Heavy-duty; one-piece steel closed stand includes mounting tabs for increased stability.
• Built-in dust chute with 4″ dust port used for both jointing and planing operations.
• Large handwheel for quick and precise adjustments of planer table.
• Heavy-duty cast iron tables with a machined finish to ensure accuracy and flatness.
• Magnetic switch provides safer and more reliable operation.

SPECIFICATIONS:

Style (Type)	Planer/Jointer
Helical Knife Size (L x W x T) (In.)	15″ x 15″ x 2.5″
Cutterhead Diameter (In.)	2-3/4″
Cutterhead Speed (RPM)	5500
Planer Cutting Capacity (W x D) (In.)	12″ x 5/32″
Planer Table Size (L x W) (In.)	21-1/4″ x 12″
Jointer Cutting Capacity (W x D) (In.)	12″ x 1/8″
Jointer Table Size (L x W) (In.)	55″ x 12″
Fence Size (L x H) (In.)	43″ x 6″
Fence Positive Stops (Deg.)	90; 45 R
Fence Tilt (Deg.)	90 – 45 R
Dust Collection Minimum CFM Required (CFM)	400
Dust Port Outside Diameter (In.)	4″
Motor Power (HP)	3
Motor Voltage (V.)	230
Prewired Voltage (V.)	230
Weight	600 lbs

“
