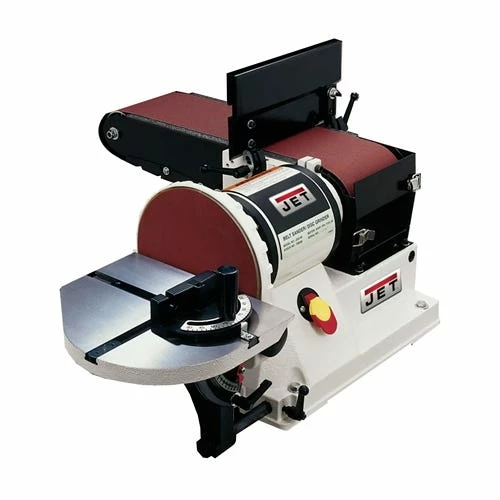

JET Tools Jet JSG-96, Benchtop 6″ X 48″ Belt / 9″ Disc Sander, 3/4HP 1Ph, 115V 708595

Jet

JSG-96; Benchtop 6 x 48″ Belt / 9″ Disc Sander; 3/4HP 1Ph; 115V 708595

The unique JSG-96 Benchtop Sander combines a 9″ disc and 6″ x 48″ belt for workshop versatility. While small and compact; the JSG-96 offers industrial 3/4 HP power while taking up a small footprint on your bench. A quick-release belt tension lever makes belt changes fast and easy while a quick-lock dust cover allows fast disc changes.

FEATURES:

• Large cast iron table has preset stops at 90° and 45° to let you use the belt sander vertically; horizontally or anywhere in between.
• Exclusive dual thumbscrew belt tracking adjustment locks to keep belt on track during use.
• Graphite covered steel platen runs cooler increasing machine and belt life.
• Specially designed belt guard allows full use of the 6″ belt width and length.
• Drive drum is rubber-coated for a better grip on the sanding belt resulting in less slippage.
• Tracking adjustment knob with quick-lock handle keeps belt on track during use.
• Quick-release belt tension lever makes belt changes fast and easy.
• Quick-lock dust cover allows fast disc changes.
• Single 4″ dust port on the back of the base collects dust effectively from both the belt and disc.
• Powerful 3/4HP motor easily handles the toughest sanding operations.
• Built-in handles for easier portability.

SPECIFICATIONS:

Disc Diameter (In.)	9
Disc Speed (RPM)	1725
Disc & Belt Table Tilt (Deg.)	10 Up; 45 Down
Disc Table Size (L x W) (In.)	12 x 7-1/2
Sanding Belt Size (L x W) (In.)	48 x 6
Belt Speed (RPM)	2258
Belt Table Size (L x W) (In.)	11 x 5-1/2
Motor Power (HP)	3/4
Motor Voltage (V)	115
Motor Amps	11

“
