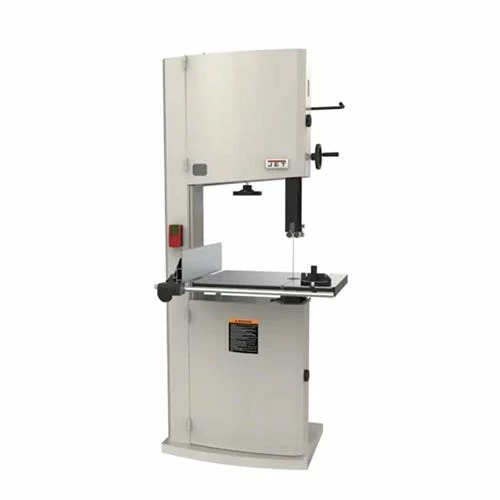

JET Tools Jet JWBS-20-3, 20″ Bandsaw, 3HP, 230V 714800

Jet

JWBS-20-3; 20 Bandsaw; 3HP; 230V 714800

Designed to perform; the JET 20” bandsaw delivers more re-saw capacity; greater throat depth and the horsepower you need to tackle bigger boards; create smoother edges and master the intricate cuts. The heavy-duty cast-iron fence system is built to give you the sturdiness and support you need for every project and features a micro-adjust dial for exact placement. The table is slotted and the guide post has a stress-free magnetic door on the front for efficient blade changes. Large; independently adjustable guides are tool-less to save you time on set up. The JET 20” steel frame bandsaw is engineered to build great projects through superior performance.

FEATURES:

• 16″ Resaw capacity for cutting large pieces of wood; slicing veneers and cutting book matched panels.
• 27-1/4″ x 20″ precision ground cast iron table for added stability and work support.
• Fence system features a micro-adjustable; dual-position side plate.
• Tool-less; independently adjustable; upper and lower ball bearing guides.
• Rigid; four-sided guide post with rack and pinion adjustment for optimum blade support.
• Easy-to-read blade tension scale can be viewed through upper door window.
• Single knob adjustment simplifies the blade tracking process.
• Blade tracking window provides clear view of blade during tracking.
• Heavy duty tensioning with quick release features three settings: full tension; partial tension and full release.
• Cast iron trunnion for maximum support and stability.
• Slotted table allows for front blade removal.
• Cast iron handwheels and ergonomically designed knobs make adjustments smooth and easy.
• Round table insert features leveling screws for precise adjustment.
• Conveniently located dual 4″ dust collection ports catch dust and chips at the source.
• Table tilts 5° left and 45° right to accommodate a wide variety of cuts.

SPECIFICATIONS:

Band Saw Size/Wheel Diameter (In.)	20-1/4
Cutting Capacity Width (In.)	20
Cutting Capacity Height (In.)	16
Blade Speed (SFPM)	2530/4850
Table Size (L x W) (In.)	27-1/4 x 20 x 1-5/8
Blade Width (In.)	1″ x 3TPI
Table Tilt (Deg.)	-5;45
Table Height from Floor (In.)	37
Motor Power (HP)	3
Motor Voltage (V)	230 only
Motor Amps	12

“
