JET Tools Jet JWP-15BHH 15″ CS Planer W/ Helical Cutterhead 722155

Jet Tools

JWP-15BHH 15 CS Planer w/ Helical Cutterhead 722155

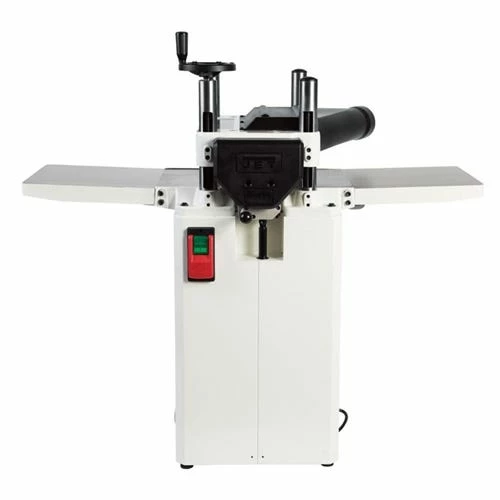

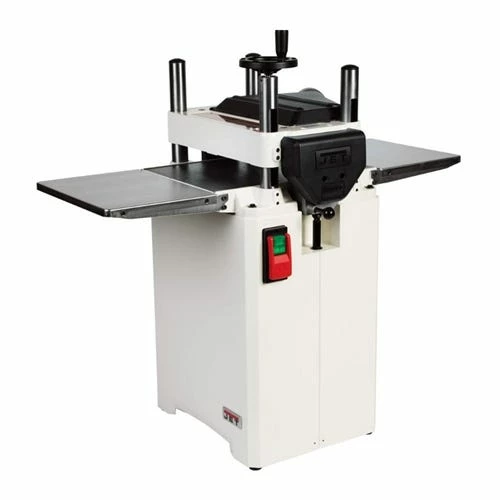

The New JET 15” helical head planer quickly and quietly transforms rough lumber into smooth boards. This machine means business with a powerful 3 HP motor combined with a helical cutterhead housing 48 staggered carbide quick change knives.

FEATURES:

• Innovative JET – Precision Air Strut System (PASS™) provides consistent upward pressure on the cutterhead; reducing the chance of board snipe.
• Helical Cutterhead houses 48 staggered carbide knives that are engineered to align themselves without any adjustment for a superior finish and quieter cut.
• Heavy-duty precision ground cast iron table and four post design provides maximum control and support when passing boards through planer.
• Powerful 3-HP motor with v-belt transmission reduces vibration and running noise.
• Dual infeed speed control for 16fpm or 20fpm; maximizes cut efficiency.
• Maximum depth of cut 1/8″; 6″ cutting height and 15″ width capacity.
• Large cast Iron precision ground infeed/outfeed tables provide support for large work pieces.
• Large hand wheel with positive gear drive easily moves the head to the desired board thickness.
• Magnetic Switch with green safety light illuminates when powered.
• 4″ Dust Port hooks up to dust management system and helps keep shop clean.

SPECIFICATIONS:

Style (Type)	Floorstanding Model
Type of Cutterhead	Helical Head
Cutterhead Speed (RPM)	5;200
Cutterhead Diameter (In.)	2-5/8″ (68mm)
Cuts Per Minute	Continuous
Number of Knives	48
Maximum Depth of Cut (In.)	1/8″
Maximum Full Width Depth of Cut (In.)	1/8″
Maximum Planing Width (In.)	15″
Maximum Planing Thickness (In.)	6″
Minimum Planing Length (In.)	5.6″
Feed Rate (FPM)	16 and 20
Number of Speeds	2
Table Size (L x W) (In.)	15″ x 46.5″
Table Size with Extensions (L x W) (In.)	15″ x 49.2″
Dust Collection Minimum CFM Required (CFM)	600 CFM
Dust Port Outside Diameter (In.)	4″ (102mm)
Motor Power (HP)	3
Motor Phase (PH)	1
Motor Voltage (V.)	230
Motor Amps	15

“
