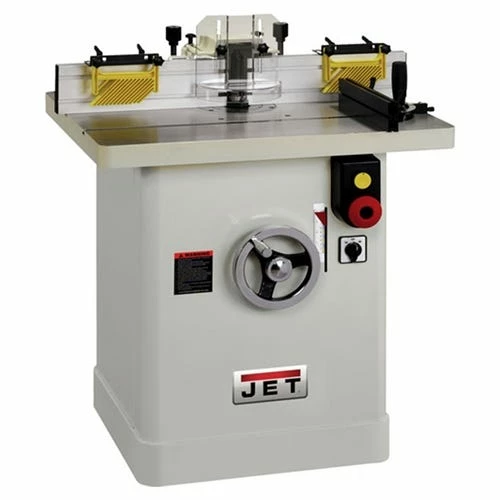

JET Tools Jet JWS-35X5-1 Industrial Shaper 5HP 1Ph 708326

Jet Tools

JWS-35X5-1 Industrial Shaper 5HP 1Ph 708326

This heavy-duty JET Shaper is available with a powerful 5HP; 1Ph motor with magnetic controls. The four-speed (4000; 6000; 8000; 10000 RPM) step pulley drive with quick release lever allows you to select the best speed and torque for different cutter diameters.

FEATURES:

• Four-speeds 4000; 6000; 8000; 10000 RPM let you select the best speed and torque for different cutter diameters.
• Powerful 5HP; 1Ph motor with magnetic controls.
• Poly-V-belt transfers maximum power to the spindle .
• Large 26-3/4” X 32-1/4” precision ground cast iron table provides a durable work area; predrilled for power feeder.
• Spindle height scale.
• Starting pins for irregular shaping.
• Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs.
• Extra-large chrome handwheel is conveniently located for fast; easy and accurate spindle height adjustments.
• Reversible spindle speeds for diverse shaping jobs.
• 4 Dust port built into fence for convenient hookup to any dust collection system.
• Spindle lock for safe and easy cutter set-up.

SPECIFICATIONS:

Spindle Speed (RPM)	4000/6000/8000/10000
Maximum Spindle Diameter (In.)	1-1/4″
Spindles Included	1-1/4
Spindle Size Under Nut (In.)	4″
Spindle Travel (In.)	4″
Reversible	Yes
Maximum Diameter Cutter Above Table (In.)	7-1/2″
Maximum Diameter Cutter Below Table (In.)	6″
Table Opening Diameter (In.)	6-19/64″
Table Inserts (In.)	2″
Table Insert Opening Diameter (In.)	2-9/16″; 4-5/16″
Table Size (L x W) (In.)	32-1/4″ x 26-3/4″
Table T-Slot (In.)	3/4″ x 3/8″
Table Height from Floor (In.)	33-1/4″
Fence Size (L x H) (In.)	16″ x 4-3/4″
Fence Travel (Major and Minor) (In.)	4″; 1″
Dust Port Outside Diameter (In.)	4″
Dust Collection Minimum CFM Required (CFM)	600
Electrical Controls	Yes
Motor Power (HP)	5
Motor Phase (PH)	1
Motor Voltage (V.)	230
Prewired Voltage (V.)	230
Motor Amps	17
Weight	550 lbs

“
