Klein

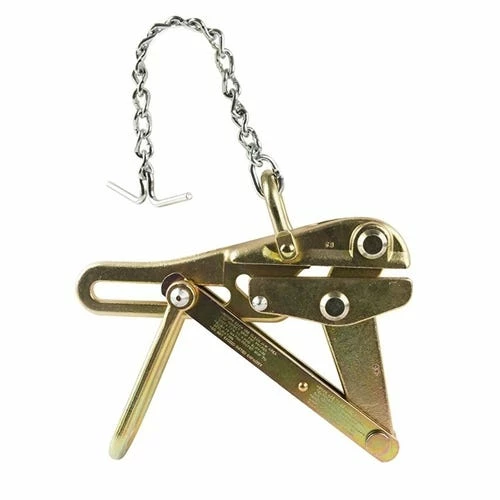

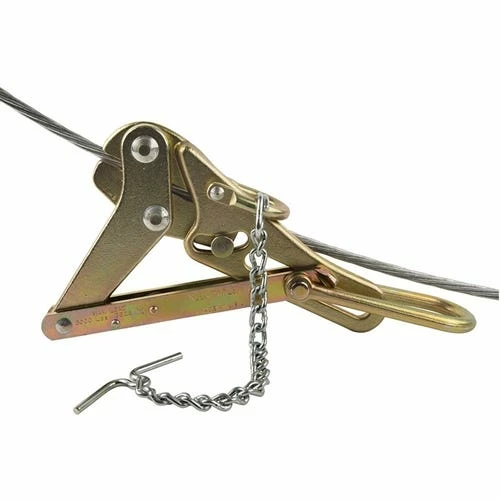

Chicago Grip Coated Guy Wire w/ Chain 16845CAT
This Chicago Grip is designed specifically to work with coated guy strand and EHS cable. Klein grips are made of drop-forged; quality US steel and heat treated for strength and durability.
FEATURES:
- Aggressive sawtooth jaw profile resists build-up from galvanized coating on guy strand and EHS cables.
- Equipped with chain; toggle and shackle to keep grip from falling off the cable.
- Locking handle keeps jaw open while grip is placed on cable with a hot stick.
- Spring closes grip on cable helping to maintain initial position.
- Designed for cable sizes 0.218 to 0.55-Inch (5.54 to 13.97 mm).
SPECIFICATIONS:
| Type | Chicago Grip |
|---|---|
| Hot Latch | No |
| Swing Latch | No |
| Spring | Yes |
| Locking Handle | Yes |
| Length | 13.3 |
| Height | 2.5″ |
| Width | 7.6″ |
| Material | Alloy Steel |
| Cable Type | Aircraft; EHS; Messenger; Guy Strand |
| Cable Diameter | 0.218″ to 0.55″ |
| Jaw Type | Aggressive |
| Jaw Length | 5″ |
| Maximum Safe Load | 8000 lb |
*WARNINGS:*
- Before each use; clean jaw area and inspect grip for proper operation to avoid slippage.
- When used on/near energized lines; ground; insulate; or isolate grip before pulling.
- Do not exceed rated capacity.
- Always match proper size and type of grip to application.
- Grips are to be used for temporary installation; not for permanent anchorage.
“
