Klein Tools Klein Parallel Jaw Grip-Lock; HDPE Wire To 1.362-Inch 1716-71

Klein

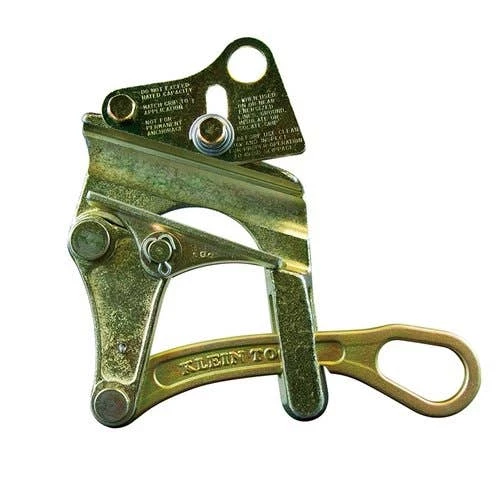

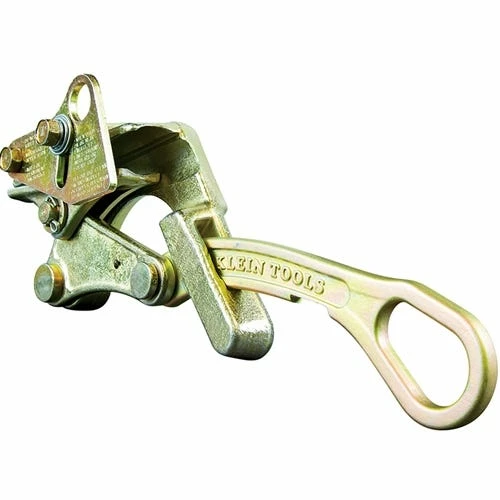

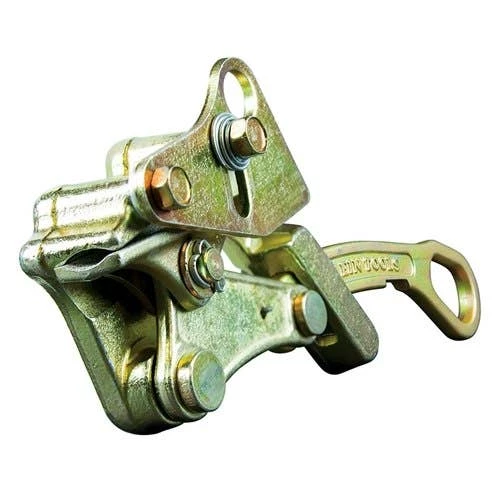

Parallel Jaw Grip-Lock; HDPE Wire to 1.362-Inch 1716-71

This parallel jaw grip was specifically designed to securely pull slippery HDPE-coated cable or tree wire. The innovative high-traction surface grips the cable without damaging the outer jacket.

FEATURES:

• Locking handle keeps jaw open while using hot stick to place grip on cable.
• Pulls cable diameters 0.625-Inch to 1.362-Inches (15.9 to 35.0 mm).
• 4;000-Pound maximum safe load.
• Tough carbide grit technology withstands even the harshest jobsite conditions.
• Spring-loaded for one-handed operation and easy placement on the conductor.
• Common tree wire cable types include general cable; Hendrix aerial systems; rite lite BLL conductor and Southwire S2 covered cable.

SPECIFICATIONS:

Type	Parallel Jaw Grip
Application	Wire Pulling
Special Features	High Traction Grip Surface; Lock
Overall Length	13.05
Overall Height	8.5″
Overall Width	6.975″
Material	Forged Steel
Cable Type	HDPE-Coated
Cable Diameter	0.625″ to 1.362″
Jaw Type	Round
Jaw Length	4.5″
Maximum Safe Load	4;000 lb
Standard	OSHA
Weight	5.10 lb

*WARNINGS:*

• Before each use; clean jaw area and inspect grip for proper operation to avoid slippage.
• When used on/near energized lines; ground; insulate; or isolate grip before pulling.
• Do not exceed rated capacity.
• Always match proper size and type of grip to application.
• Grips are to be used for temporary installation; not for permanent anchorage.

“
